Chapter 1: What is a shipping container chassis trailer?
Chapter 2: How much weight can a container chassis trailer hold?
Chapter 3: What is the difference between container chassis and flatbed trailer?
Chapter 4: What are the advantages of container chassis for sale?
As an overseas territory of the United States, Guam also has a series of vehicle applications in the field of transportation, among which shipping container chassis trailer play an important role.
1.1.Structural features
Container chassis for sale in Guam are mainly composed of frames, traction pins, suspensions and other parts. The frame is the skeleton of the entire vehicle and is usually made of high strength steel. The use of this steel ensures that the frame has sufficient strength to carry heavy objects. In the transportation environment of Guam, the frame of the shipping container chassis trailer can withstand the pressure of bumpy roads and heavy cargo.

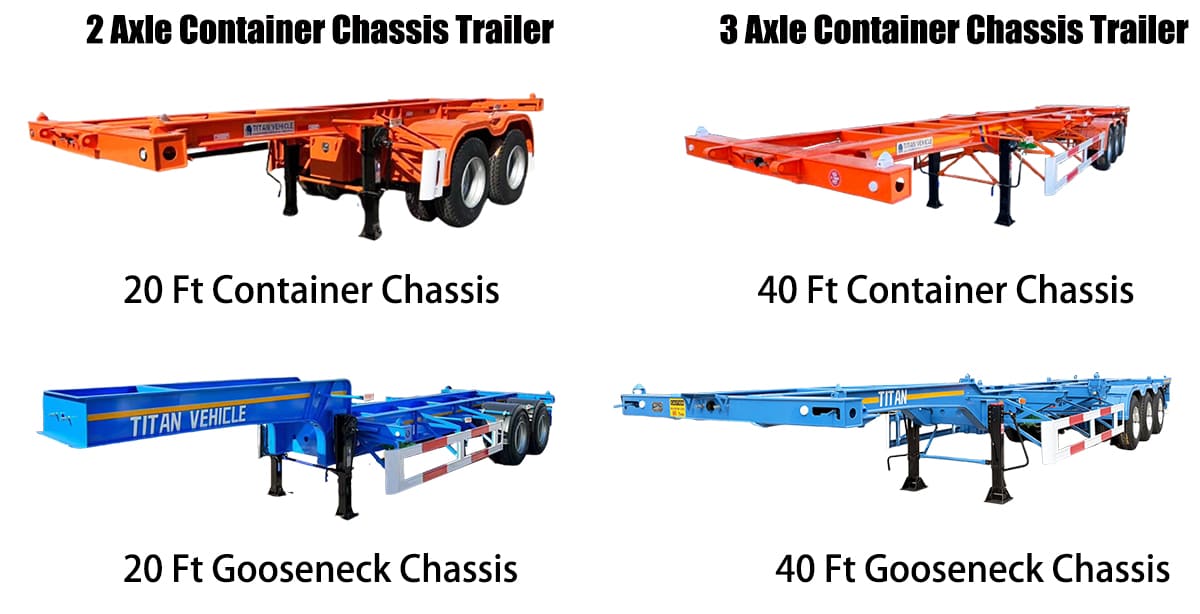

Container chassis for sale in Guam can be divided into gooseneck shipping container chassis trailer and straight beam container chassis trailer.
Gooseneck shipping container chassis trailer
The notable feature of the gooseneck container chassis trailer is the gooseneck structure with the front end bent upward. This design effectively improves driving stability by lowering the center of gravity of the vehicle, and is particularly suitable for transporting heavy cargo (such as large containers, construction machinery, etc.).
Its advantages are:
Strong carrying capacity: The gooseneck structure disperses the weight of the cargo, reduces the pressure on the tractor, and allows a larger load.
Good passability: The curved front end reduces the container chassis for sale in Guam's approach angle and can easily pass steep slopes or uneven roads.
High safety: After the center of gravity is lowered, the gooseneck shipping container chassis trailer is not easy to roll over when driving at high speed or turning.
In Guam's port transportation, the gooseneck container chassis for sale is the main model, especially suitable for large container transportation over 40 feet.
Straight beam container chassis for sale in Guam
The frame of the straight beam shipping container chassis trailer is a straight design, with a relatively simple structure and low cost.
Its features include:
Lightweight: The straight frame reduces the use of steel, reduces the weight of the ontainer chassis for sale in Guam, and improves fuel efficiency.
Flexible adaptation: The straight beam shipping container chassis trailer is suitable for transporting 20 foot or 40 foot standard containers or small and medium sized goods, especially in short distance distribution in cities.
Easy maintenance: The structure is simple, and the cost of repairing and replacing parts is low.
In Guam's daily logistics, straight beam container chassis for sale are often used for short distance transportation from ports to warehouses, as well as regional distribution of light loaded goods.
2.1 Wide range of uses
In Guam's logistics transportation, shipping container chassis trailer are the main force of port transportation. It can be used to transport containers. Since Guam is an important maritime transportation hub, a large amount of goods are transported in and out by containers. Container chassis for sale in Guam can easily and quickly transport containers from port terminals to warehouses or other destinations. Moreover, shipping container chassis trailer can also be adapted according to the size of the container, and standard containers of 20 feet and 40 feet can be easily transported.
In addition to container transportation, container chassis for sale in Guam are also used to transport large mechanical equipment. For example, excavators and loaders used in construction projects. These equipment are heavy and large in size, and the strong carrying capacity of shipping container chassis trailer can meet the transportation needs. At the same time, the structural design of the container chassis for sale in Guam makes the loading and unloading of equipment relatively convenient. Some shipping container chassis trailer are equipped with adjustable support devices to facilitate the fixing and loading and unloading of equipment.
Shipping Container Chassis Trailer Container Chassis for Sale in Guam
The load bearing capacity of a container chassis for sale in Guam is affected by many factors. The design differences of different structural typesand size specifications will significantly change its load distribution and load-bearing performance.
2.1. Differences in structural types
Straight beam container chassis trailer
Strength of the frame longitudinal beam: The thickness, section height and bending modulus of the main longitudinal beam material of a straight beam container chassis for sale in Guam directly affect its overall load bearing capacity.
The crossbeam layout density: The smaller the crossbeam spacing of a straight beam container chassis for sale in Guam, the better the load dispersion effect, but it may increase its own weight.
Suspension system: The rigidity of the leaf spring or air suspension of a straight beam container chassis for sale needs to be coordinated with the frame structure to avoid local overload.
Gooseneck shipping container chassis trailer
Strength of the gooseneck: The transition area of the gooseneck container chassis for sale in Guam connecting the traction seat needs special reinforcement, and its structural rigidity affects the upper limit of the front load.
Characteristics of the center of gravity distribution: The design of gooseneck shipping container chassis trailer will reduce the height of the cargo platform, but it may limit the load on the front axle, and the front and rear counterweights need to be balanced.

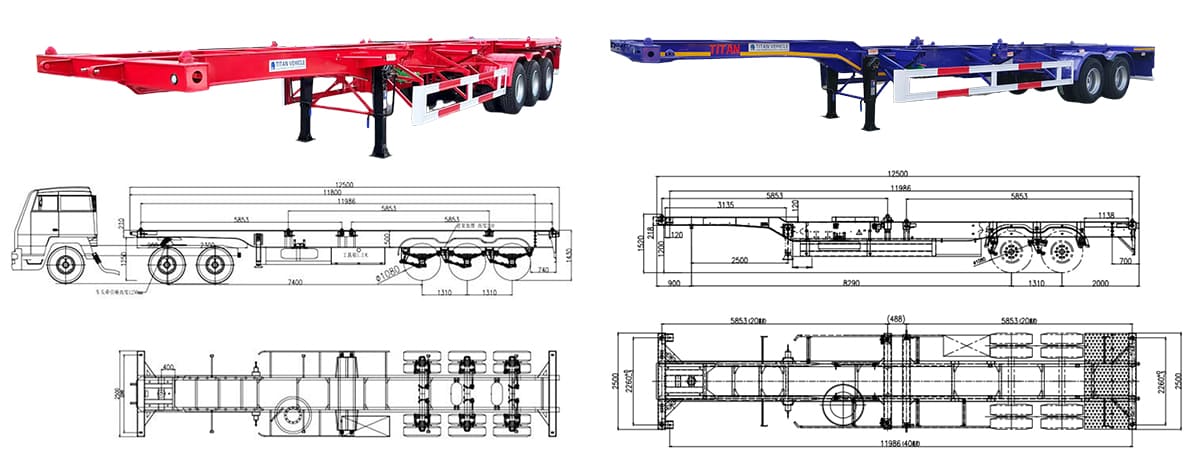

2.2. Influence of size specifications
20 foot container chassis trailer
Wheelbase and track of container chassis for sale in Guam: The short wheelbase of 20 foot shipping container chassis trailer makes them flexible in turning, but they are prone to torsional deformation risks when carrying loads over long distances.
Frame integrity: The short sized frame of 20 foot container chassis for sale in Guam has high rigidity, but local stress needs to be paid attention to when the load is concentrated.
40 foot container chassis trailer
Longitudinal deflection control: The long span frame of 40 foot container chassis for sale in Guam is prone to drooping in the middle when fully loaded, and the anti-bending design or additional fulcrums need to be strengthened.
Multi-axle coordination: 40 foot shipping container chassis trailer adopt a 2 axle or 3 axle design, and their axle load distribution needs to be optimized to avoid single axle overload.
2.3 Factors affecting versatility
Material and process of shipping container chassis trailer
When container chassis for sale in Guam use high strength steel or aluminum alloy frames, their yield strength and welding process quality directly affect the ultimate bearing capacity.
Load distribution mode of shipping container chassis trailer
When container chassis for sale in Guam are subjected to concentrated loads (such as pressure from container corner fittings), the requirements for local structures are higher than those for uniformly distributed loads (such as bulk cargo flatbeds).
Dynamic working condition adaptation of shipping container chassis trailer
When container chassis for sale in Guam are subjected to sudden braking, cornering and other working conditions, inertia forces will cause load transfer, and dynamic safety margins need to be considered.
Shipping Container Chassis Trailer Container Chassis for Sale in Guam

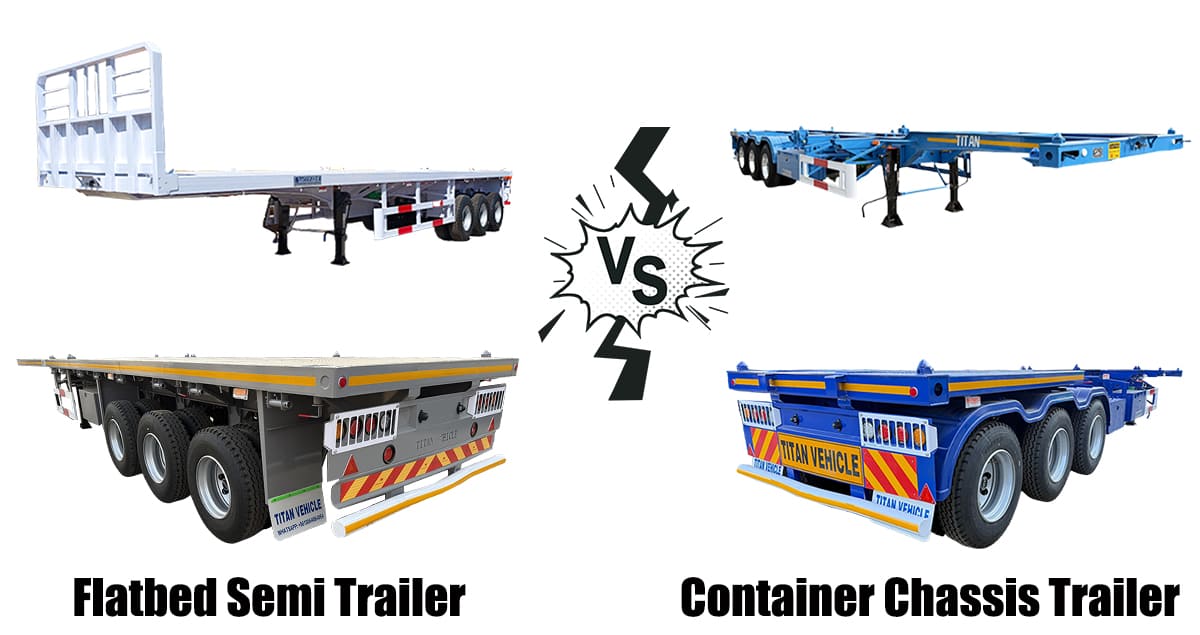

3.1 Similarities
Purpose
Shipping container chassis trailer and flatbed semi trailers are mainly used to transport containers, suitable for sea transportation, rail transport and road logistics.
Container chassis for sale in Guam and flatbed semi trailers can both adapt to standard container sizes such as 20 feet, 40 feet, and 45 feet.
Structure
Shipping container chassis trailer and flatbed semi trailers both adopt a frame structure of longitudinal beam and cross beam to ensure overall load bearing strength.
Container chassis for sale in Guam and flatbed semi trailers must comply with the installation requirements of international standard container locks (such as twist locks).
3.2 Differences
Structural design
Shipping container chassis trailer for sale in Guam adopts an open frame structure, retaining only longitudinal beams, cross beams and supporting structures, without a floor design, and the overall weight is lighter.
Container flatbed trailer has a complete flatbed cargo platform, which can transport containers, as well as bulk cargo or large equipment, and has a wider applicability.
Carrying method
Container chassis for sale in Guam can only transport containers, relying on the structural strength of the container itself to carry goods, and cannot directly stack bulk cargo.
Container flatbed trailer can transport containers and can also directly load goods, such as steel, mechanical equipment, etc., with more flexible uses.
Deadweight and load efficiency
Shipping container chassis trailer for sale in Guam has a simplified structure and a lighter deadweight, which can increase the effective load capacity and is suitable for weight sensitive transportation scenarios.
Container flatbed semi trailer has a larger deadweight due to the cargo platform, but the carrying method is more flexible and suitable for multi-purpose transportation needs.
Loading and unloading convenience
Container chassis for sale in Guam needs to rely on cranes or front loaders to load and unload containers, with high loading and unloading efficiency, but manual loading and unloading is not possible.
Container flatbed trailer can use forklifts or manual loading and unloading of bulk cargo, which is more adaptable, but the efficiency is slightly lower when loading and unloading containers.
Applicable transportation scenarios
Shipping container chassis trailer is mainly used for standard container transportation from ports and railway stations to logistics parks, suitable for efficient turnover of fixed routes.
Container flatbed trailer is suitable for multimodal transport, mixed transportation of bulk cargo and containers, and is more suitable for comprehensive logistics needs.
Shipping Container Chassis Trailer Container Chassis for Sale in Guam
4.1. Overall advantages
High transportation efficiency
Shipping container chassis trailer are usually used in conjunction with tractors, and can travel quickly on the road to achieve long-distance transportation. Its design allows for a higher driving speed, and on roads with good road conditions such as highways, it can maintain an efficient transportation rhythm, greatly shortening the transportation time of goods.
The body structure of the container chassis for sale in Guam is reasonable, and the process of loading and unloading goods is relatively simple and fast. For container transportation, it can quickly cooperate with the port's loading and unloading equipment to achieve efficient transfer of containers and improve the turnover efficiency of port goods.
Strong carrying capacity
The frame structure of the shipping container chassis trailer for sale in Guam is carefully designed and made of high strength steel. This material and structure enable the vehicle to withstand huge weight. Container chassis for sale can easily carry heavy goods such as large machinery and equipment, construction materials, containers full of goods, etc.
This strong carrying capacity enables it to play a key role in industrial transportation, material transportation of large engineering projects and other fields, and provides a solid foundation for large-scale cargo transportation.
Good versatility
Shipping container chassis trailer are highly versatile. They can be adapted to various types of cargo transportation. In addition to common container transportation, container chassis for sale in Guam can also transport large objects of various sizes and shapes. By installing different fixtures or shelves, it can easily transport bulk goods such as wood and steel, as well as special shaped goods such as wind turbine blades and large tanks.
4.2 Advantages of each part
Frame
High strength and durability: The frame is the core supporting part of the shipping container chassis trailer and is made of high strength alloy steel. This material has extremely high yield strength and tensile strength, and can withstand the heavy pressure of the cargo and various impact forces during driving.
Reasonable structure: The structural design of the frame of the container chassis for sale in Guam fully considers the mechanical principles and adopts a reasonable beam structure. It can effectively distribute the weight of the cargo evenly to various parts of the shipping container chassis trailer, reducing the situation of excessive local stress. At the same time, various installation holes and connection points are reserved on the frame to facilitate the installation of other components, such as suspension systems, container fixing devices, etc.
King pin
High connection reliability: The king pin is a key component connecting the tractor and the shipping container chassis trailer for sale in Guam. Its design and manufacturing precision is very high, which can ensure close cooperation with the towing seat of the tractor. During driving, the king pin can withstand huge tensile and shear forces to ensure a firm and reliable connection between the container chassis for sale and the tractor.
Good safety: In order to ensure the safety of the connection, the king pin of the shipping container chassis trailer is usually equipped with a safety device. These safety devices can prevent the king pin from accidentally falling off, further improving the safety of driving. In addition, the material of the king pin has undergone strict quality inspection, has good wear resistance and fatigue resistance, and can work stably for a long time.
Suspension system
Good shock absorption effect: The suspension system is an important part of the container chassis for sale in Guam to ensure driving comfort and cargo safety. Common suspension systems include leaf spring suspension and air suspension. Leaf spring suspension has a simple structure, is strong and durable, and can effectively buffer the impact of road bumps on vehicles and cargo. Air suspension has better shock absorption performance, and it can automatically adjust the hardness and height of the suspension according to the load of the vehicle.
Container lock
Securing cargo safely and reliably: The container lock is a key device for fixing containers on shipping container chassis trailer. It is usually made of high strength steel and installed at specific positions on both sides of the frame. Through mechanical or hydraulic devices, the container lock can be tightly engaged with the corner pieces at the bottom of the container to form a firm connection.
Adapt to containers of different sizes: The design of the container lock is highly flexible and can adapt to standard containers of different sizes such as 20 feet and 40 feet. By adjusting the position of the lock or adopting an adjustable structure, it can quickly adapt to containers of different sizes, thereby improving the versatility and transportation efficiency of the container chassis for sale in Guam.
